FX1N FX2N FX3U 40MT 24DI 16DO 2AD 2DA Analog For PLC RS485 Modbus 4 Axis HighSpeed Pulse 100Khz Output Stepper Motor

ราคา 9966 บาท

แสกน QR Code หรือลิ้งด้านล่างเพื่อดูรายละเอียดและสั่งซื้อ

https://invol.co/aff_m?offer_id=101374&aff_id=376986&source=feed&url=https://www.lazada.co.th/products/fx1n-fx2n-fx3u-40mt-24di-16do-2ad-2da-analog-plc-rs485-modbus-4-pulse-100khz-stepper-motor-i3318055425-s12289654862.html?search=1&freeshipping=1

FX1N FX2N FX3U 40MT 24DI 16DO 2AD 2DA Analog For PLC RS485 Modbus 4 Axis HighSpeed Pulse 100Khz Output Stepper Motor

    Motor Type:DC Motor
    Certification:None
    Origin:CNOrigin
    Model Number:FX3U40MT 2AD 2DA
    DI:24
    DO:16
    AD:2 010V
    DA:2 010V

    Motor Type:DC Motor
    Certification:None
    Origin:CNOrigin
    Model Number:FX3U40MT 2AD 2DA
    DI:24
    DO:16
    AD:2 010V
    DA:2 010V

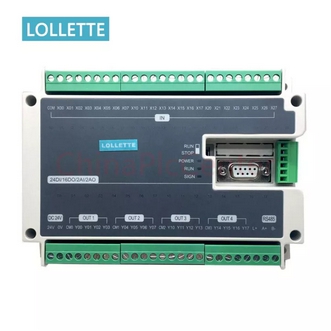

FX1N  FX2N  FX3U40MT Transistor PLC  4 axis

    24 inputs and 16 outputs 4 axis highspeed pulse isolated outputs  max 100KHz

    2 channel 0~10V analog inputs 2 analog outputs;  AD0 D8112 AD1 D8113  DA0 D8116 DA1 D8117

    4 channel highspeed single phase pulse input .  2ch AB phase  10KHz

    4 channel highspeed pulse output 100KHz support PLSY PLSR PWM ZRN DRVI DRVA etc.  for stepper motors and servo motors.

    Clock function Optional $5

    24V DC power supply 24V DC switching power supply can be bought from our store ;

    With Full input and output indicators all clearly displayed on the front panel

    Pluggable Terminal design wiring replaced by more convenient.

    Compatiable with Gxdeveloper 8.86 or GXWorks2

    Support RS Modbus RTU masterslave  Modbus AscII masterslav
    RS485 Station No. D8121 Mode D8126 =0  =0x2 slave station =0x20 master station
    RS232 Station No. D8401
     mode D8406=0  =0x2 slave station =0x20 master statio

RS485
1.new design

Has shell beautiful and anti dust; back of the rail snaps for easy installation and removal eliminating the tedious installation with screw punch; Compact design less space; Input and output indicators clear and intuitive

Size: L  W  H = 155mm  110mm  43mm
2. software

Compatible Mitsubishi ladder programming software that supports the latest version of the Gxdeveloper 8.86 and Mitsubishi latest GXWorks2 And other software to support online monitoring downloading.
3. Instructions

Mitsubishi fx1n fx2n instruction except FROM TO VRRD VRSC ABS RD3A WR3A instructions
4. encryption

Support special encryption method the market fx series regular crack the password is invalid effectively protect your company's intellectual property and the fruits of labor
5. communications

1 RS free protocol communication Mitsubishi basic 2 modbus RTU master and slave protocol conveniently supported temperature controller inverter communication 3 modbus ASCII masterslave protocol
6. Highspeed input

Supports 6channel highspeed pulse inputs 2 AB phase pulse input encoder interface is fully compatible fx1n Physical map WYSIWYG

Performance PK


This SMARTPLC


Other PLCs

Production process


SMT automatic placement  reflow


Line manual welding

Surface treatment


Fully three antipaint spraying higher protectionstandard


NA

IO indicator


Indicator clearly visible and display digital Facilitate debugging  monitoring


No

Expansion Module


Can be accessed RS485 expansion module  enhanced RS instruction


Can not be extended

PLC master CPU


Imported industrial grade 32 ARM CPU


STC 8bit CPU

Immunity EFT test


Greater than the highest standards of industrial grade 4KV


Less than 2KV

Analog Input


2 channel AD Voltage signal Input


Not supported

Output capacity


1.Qualified relay output current 5A

2 transistor module output current of 1A with tvs protection



1 inferior relay

2 mos tube called the large current output  is actually very easy to damage

IO terminals


Pluggable replacement  easy debugging  price 0.5 yuan per person  it is Brass pins


Ordinary is not removable  the price is only 0.2 yuan per person  iron pins easy to rust

Programming communication port


1 .Mitsubishi Interface with damping locked

2 .RS485 Programming and RS instruction

Two interfaces can be used simultaneously !


232 ordinary programming line vibration easy to swap  a single interface.

32 instruction


Support


Not supported

P instruction


Support


Not supported

Retentive


Support  and Retentive device range and Mitsubishi as


Does not support or only a small amount of support

Realtime clock


Clock Calendar

 optional


No

Highspeed output channels


4 channel highspeed output support all FX1N  FX2N Relative positioning absolute positioning command to control servo stepper easier


Not supported

Highspeed input detection


6 channel highspeed counter inputs can simultaneously detect two way AB phase encoder


Not supported

Modbus communication


Stand by 485 Modbus RTU  ASCII master and slave communications can Networking Remote control monitoring and more convenient


Not supported

Instruction Set


27 basic instructions  2 step instructions 102 Basic application instructions  almost fully compatible with Mitsubishi instruction  development of alternative and more convenient


Instruction less general application instructions 50 or so the development of alternative difficult

2K step scan time


Less than 4MS


Greater than 50MS

Timer


256 T0T255


40 or so

Counter


256 C0C255


40 or so

Register


2500 D0D2047 D8000D8255 domestic Up


80 or so



Specifications of FX1N FX2N FX3U 40MT 24DI 16DO 2AD 2DA Analog For PLC RS485 Modbus 4 Axis HighSpeed Pulse 100Khz Output Stepper Motor

    Brand No Brand
    SKU 3318055425_TH12289654862
    Model attributes_model
    Warranty Type No Warranty

What’s in the boxเริ่มต้นที่

Keyword/Tag : FX1N, FX2N, FX3U, 40MT, 24DI, 16DO, 2AD, 2DA, Analog, For, PLC, RS485, Modbus, 4, Axis, HighSpeed, Pulse, 100Khz, Output, Stepper, Motor
